> SPECIFICATION | |||
Name | LED Bay Light | Item No. | HQ-BL-B400-W50 |
Power | 50W | Input | AC85-265V 50/60Hz |
Lumen | 5100LM±5% | Viewing angle | 120° |
Color temperature | 2800-10000K | Color rendering index | >80 |
Working temperature | -30~+50℃ | Storage temperature | -30~+65℃ |
Protection grade | IP54 | LED lifespan | >50,000Hrs |
Shell color | Black | Measurement | φ410*311MM |
> APPLICAITON | |
Widely used in workshop, logistics warehouse, underground parking lot, gymnasium, supermarket and etc. | |
> FEATURE | |
1. Adopt massive fins type radiator, heat transfer plate weld with heat sink, good heat dissipation | |
2. The anodic oxidation spinning pure aluminum reflector can optimize lighting performance and reduce glare at the same time | |
3. With bright chip, high transmittance refractive lens, stable constant current power supply | |
4. Create a professional lighting solution | |
5. Simple installation, easy disassembly, wide application | |

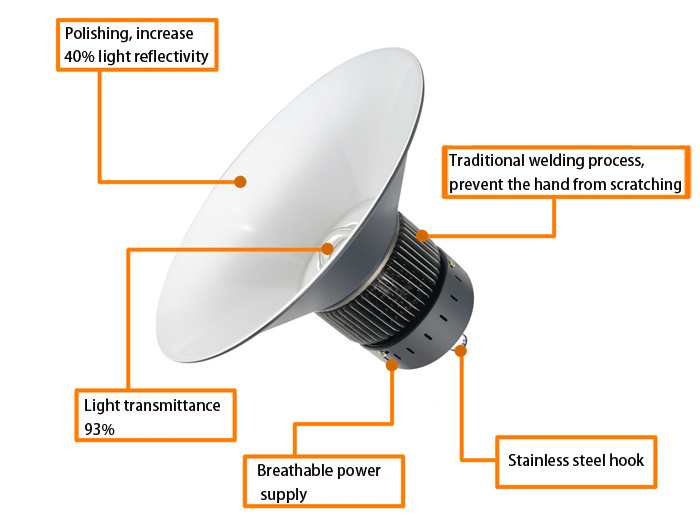

> DETAILS SHOW |

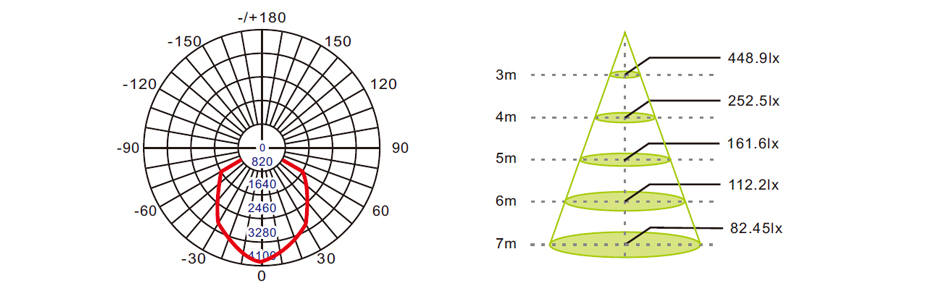

> DISTRIBUTION CURVE |

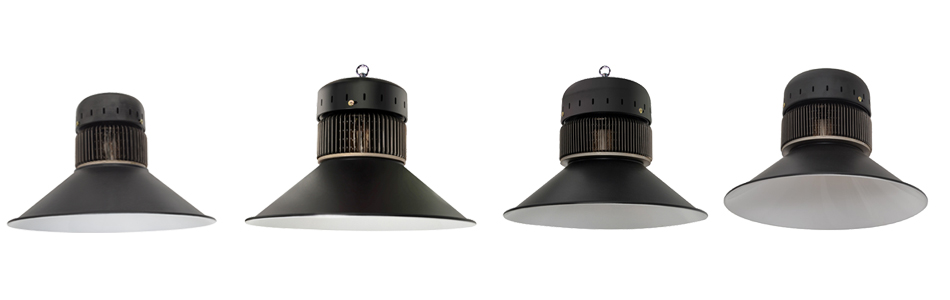

> ALL SERIES |
ITEM NO. | POWER | LUMEN | MEASUREMENT |
HQ-BL-B400-W30 | 30W | 3000LM±5% | φ410*270MM |
HQ-BL-B400-W40 | 40W | 4150LM±5% | φ410*311MM |
HQ-BL-B400-W50 | 50W | 5100LM±5% | φ410*311MM |
HQ-BL-B400-W60 | 60W | 5950LM±5% | φ410*311MM |
HQ-BL-B400-W80 | 80W | 7800LM±5% | φ410*311MM |
HQ-BL-B400-W100 | 100W | 10500LM±5% | φ410*311MM |
HQ-BL-B400-W120 | 120W | 11300LM±5% | φ410*331MM |
